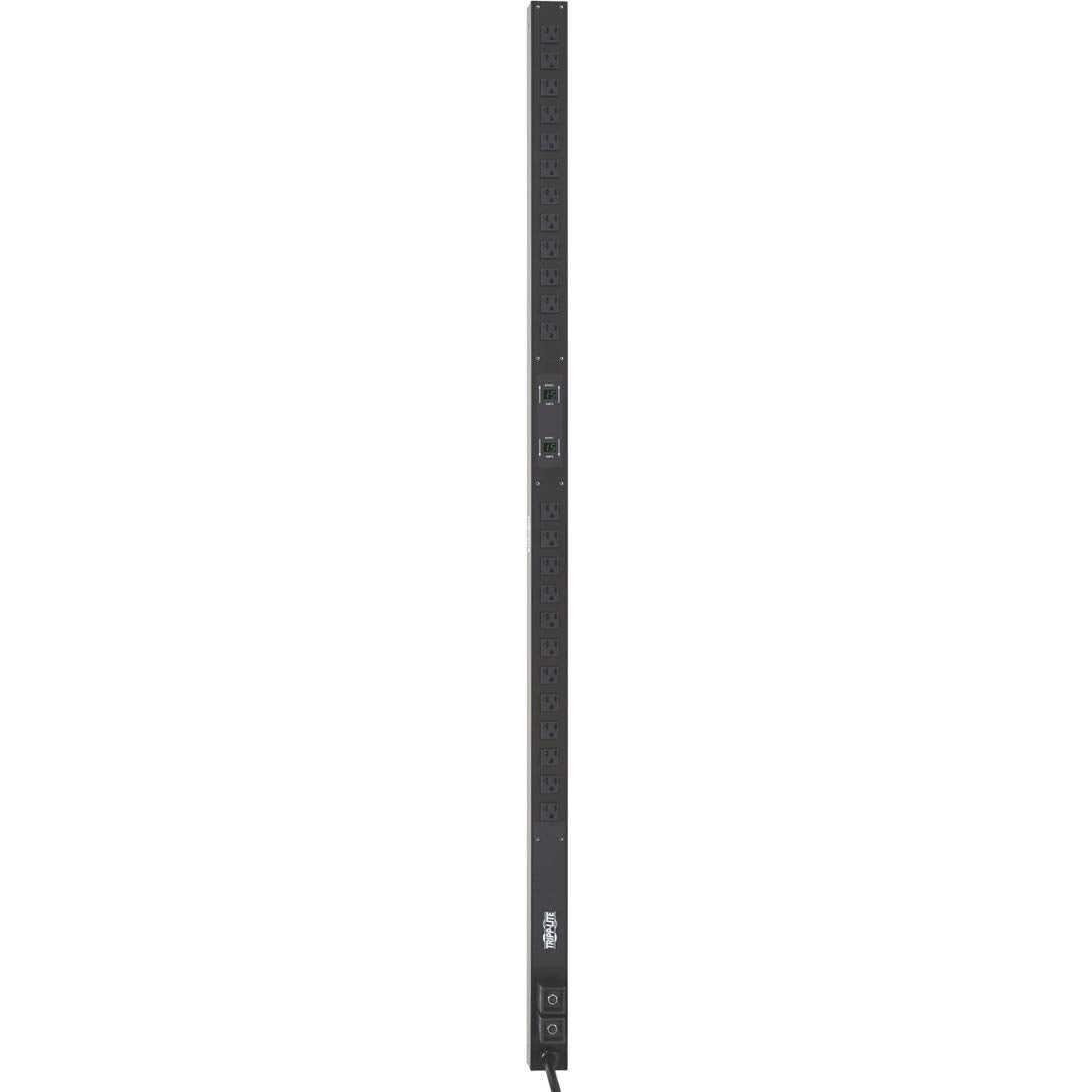

Tripp Lite Metered PDU, 30A, 24 Outlets (5-15/20R), 120V, L5-30P, 10 ft. Cord, 0U Vertical Rack-Mount Power (PDUMV30)

Tripp Lite Metered PDU, 30A, 24 Outlets (5-15/20R), 120V, L5-30P, 10 ft. Cord, 0U Vertical Rack-Mount Power (PDUMV30)

Brand: TRIPP LITE

Features:

• Item Package Dimension: 65.49L x 4.99W x 3.19H inches
• Item Package Weight - 10.25 Pounds
• Item Package Quantity - 1
• Product Type - UNINTERRUPTIBLE POWER SUPPLY

Details:

Power Distribution Unit From the manufacturer The Ideal Metered Power Distribution Solution for Network Equipment Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. Product Summary: 30A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 24A continuous) Pair of digital meters report output current in amps for each load bank 24 NEMA 5-15/20R outlets in two separately breakered load banks Attached 10ft cord with NEMA L5-30P input plug 0U 63.75in vertical rackmount PDU 2-Year Warranty Reliable IT Power Distribution and Versatile Installation Options The PDUMV30 provides 24 front-facing 5-15/20R outlets arranged in two individually breakered and metered 20A load banks and a 10-ft. power cord with L5-30P plug for distribution of alternate waveform AC power to supported equipment from a UPS system, generator or utility wall outlet. (Maximum PDU capacity is 30A, agency derated to 24A.) The PDUMV30 features a rugged all-metal case, high-quality outlets and plug, switch-less design and dual 20A circuit breakers (one per outlet bank, protected to prevent them from being tripped accidentally). The PDUMV30 is easy to integrate with a wide range of data center and network applications. It is configured for toolless button-mount 0U (vertical) installation in compatible rack enclosures. Included mounting hardware can be used to adapt the PDUMV30 for standard 2- and 4-post rack enclosures, raceway, wall-mount, workbench, under-counter and similar installations. Digital Current Meters and 2-Year Warranty The PDUMV30 is equipped with dual digital LED meters, one for each individually breakered bank of 12 outlets. These meters enable IT personnel to visually monitor the load on each PDU outlet bank in real time, helping to prevent utility, generator, UPS or PDU overloads and ensuring proper load balance in complex redundant power applications. The PDUMV30 comes backed by a 2-Year Warranty. As a part of Tripp Lite's commitment to environmental responsibility, the PDUMV30 is manufactured in compliance with strict RoHS specifications. Why Choose Tripp Lite? Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust. See More
